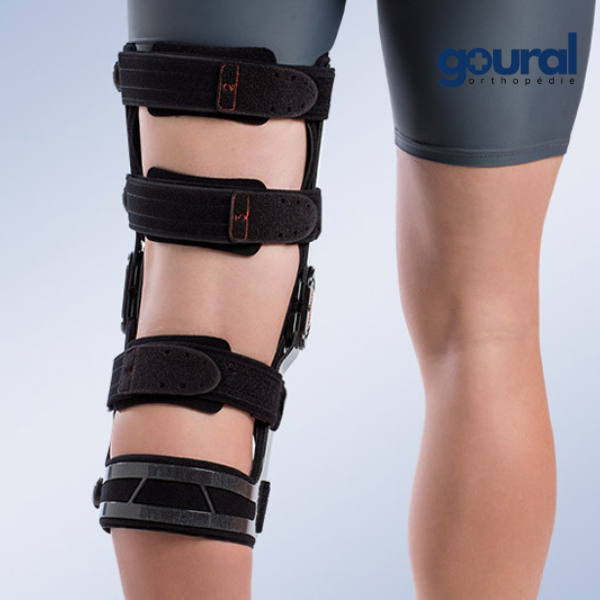

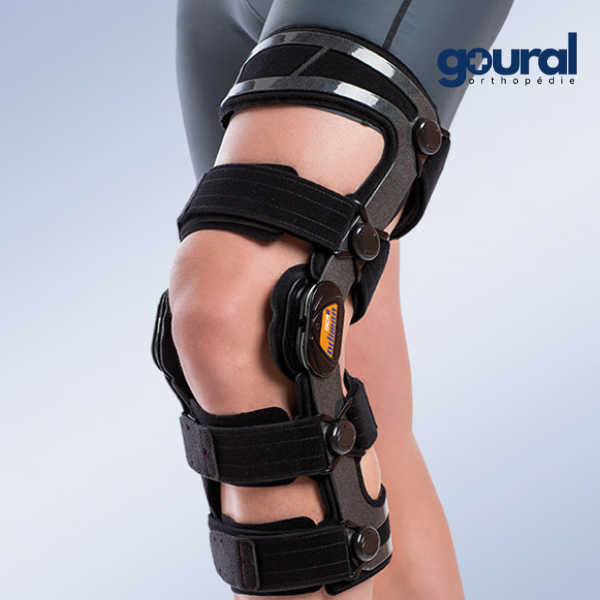

Hinged knee brace with flexion extension control

Articulated knee brace with flexion-extension control.

Made of low-profile, lightweight aluminum, it features dynamic polycentric joints with control and limitation.

Inflatable anti-genuvalgum and anti-genuvarum system:

Accessory:

Optional inflatable condylar relief pad.

Knee injuries such as ligament and/or meniscal ruptures require a method that stabilizes the knee joint in the anterior-posterior and medio-lateral direction and that, combined with a polycentric mechanical articulation, protects and respects the rehabilitation period, being able to be progressively adapted to the needs of each patient and their particular disease, adjusting to the specificities of the medical protocol.

In accordance with these criteria, we have designed the new orthosis to meet all the technical needs aimed at correct treatment.

Features :

Made of low profile, lightweight aluminum, it features dynamic polycentric joints with flexoextension control and limitation.

Non-slip interior lining providing comfort and protection.

The joints incorporate condile cushions, with an air chamber.

For the adjustment of the flexo-extension, it has galvanized steel shims (they prevent corrosion) and different levels.

Limit level:

Extension: 0°, 10°, 20°, 30°, 40°.

Flexion:

45°, 60°, 75°, 90°.

Aluminum allows for a little individualized adaptation.

Adjustment and support system with adjustable straps that incorporate non-slip protective pads for a better fit.

Checking knee joint mobility.

Mediolateral valgus-varus stabilization.

Limitation of anterior-posterior tibial sliding (box effect).

Control of hyperextension and medial rotation

Collateral ligament injuries (ruptures), conservative treatment of instabilities associated with combined knee injuries, cruciate ligament rupture associated with collateral ligamentous legions (triad), and post-surgical treatment in the field of ligament surgery (ACL) and (DLC).

Lockable in flexion: 90-75-60 and 45°

Blockable in extension: 40-30-2010-0°

Orthosis supplied with all locking wedges.

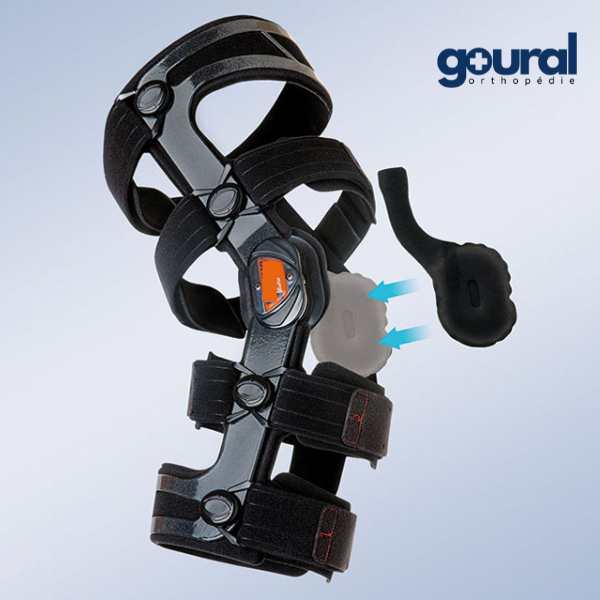

OPTIONAL AIR CUSHIONED CONDYLAR PAD.

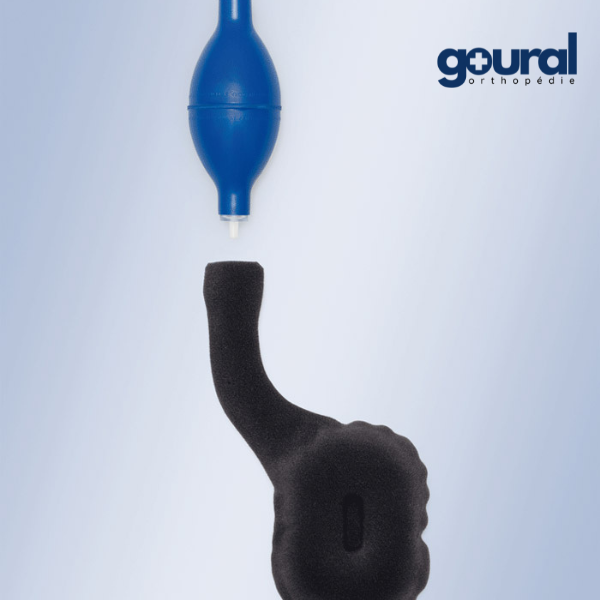

Air cushion condylar pad for better protection with inflation system to regulate the level of compression.

Accessory for FUNCTIONAL KNEE ORTHOSES WITH FLEXION-EXTENSION CONTROL.
